51203V/HR22T2軸承
更新日期：2026/4/11簡介: SKF軸承51203V/HR22T2 類型為聚合物球軸承,推力球軸承, PP/PP/stainless steel/PP， 內徑為:17mm外徑為:35mm厚度為:12mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 51203V/HR22T2軸承 配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,51203V/HR22T2極限轉速,游隙, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

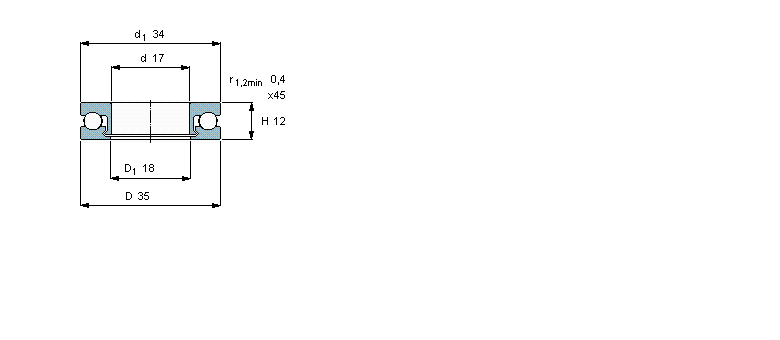

聚合物球軸承,推力球軸承, PP/PP/stainless steel/PP51203V/HR22T2軸承 樣本圖紙
| 聚合物球軸承,推力球軸承, PP/PP/stainless steel/PP | ||||||||
|
||||||||
| 主要數據尺寸 | 負荷能力 | 額定速度 | 體積 | 型號 | ||||
| d | D | B | 動態 1) | 靜態 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 17 | 35 | 12 | 0,66 | 0,53 | 440 | 0,012 | 51203 V/HR22T2 | |
