C71914DB/P7軸承
更新日期：2026/4/11簡介: SKF軸承C71914DB/P7 類型為角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid， 內徑為:70mm外徑為:100mm厚度為:16mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF C71914DB/P7軸承 配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,C71914DB/P7極限轉速,游隙, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

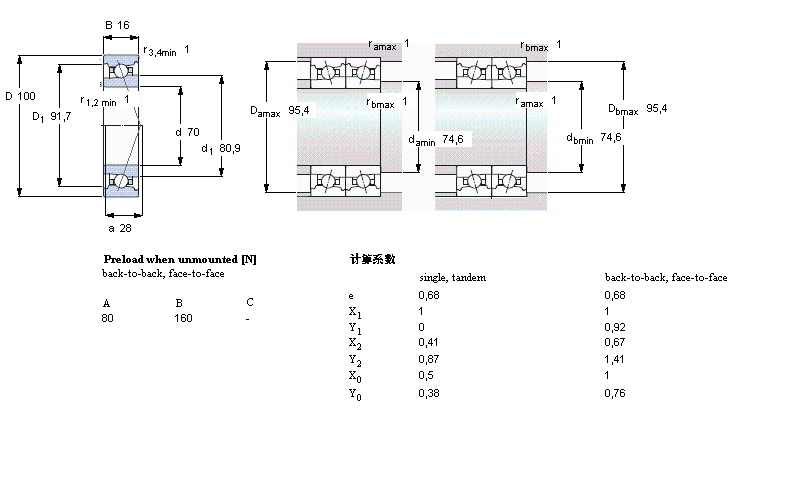

角接觸球軸承, 精密, C .. DB, contact angle 25°, hybridC71914DB/P7軸承 樣本圖紙
| 角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 70 | 100 | 16 | 17,2 | 20 | 0,85 | 17000 | 26000 | 0,33 | C71914 DB/P7 | - | |
